12 Sample images

$\includegraphics[width=5.5in]{figs/ndvi-cbar.png}$ $\includegraphics[width=5.5in,height=.33in]{figs/blank-filler}$ $\includegraphics[width=5.5in]{figs/evi-cbar.png}$ $\includegraphics[width=5.5in,height=.2in]{figs/blank-filler}$

Figure 7: MODIS VI Color Palettes for NDVI (upper) and EVI (lower) products as used in this document.

$\includegraphics[width=2.75in]{figs/ndvi-13q1-img-2000177-scaled.png}$ $\includegraphics[width=2.75in]{figs/evi-13q1-img-2000177-scaled.png}$

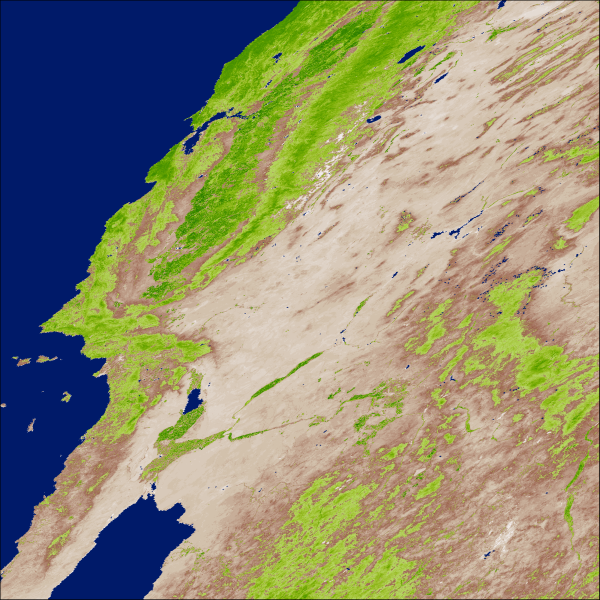

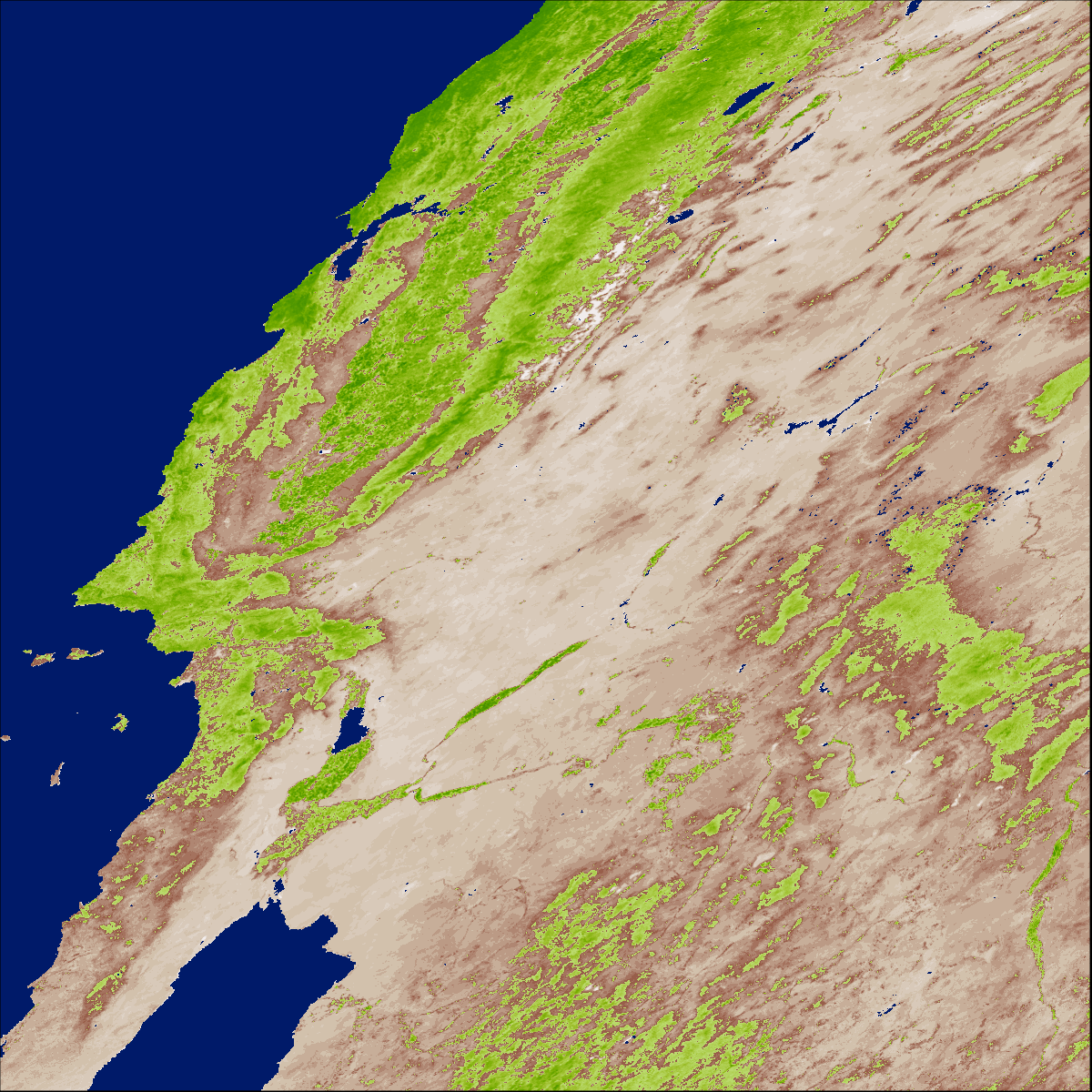

Figure 8: Colored 16-day 250-m MOD13Q1 NDVI and EVI images (left and right respectively). Data from the western United States (tile h08v05), corresponding to the period from June 25 to July 10, 2000.

$\includegraphics[width=2.75in]{figs/ndvi-13a1-img-2000177-scaled.png}$ $\includegraphics[width=2.75in]{figs/evi-13a1-img-2000177-scaled.png}$

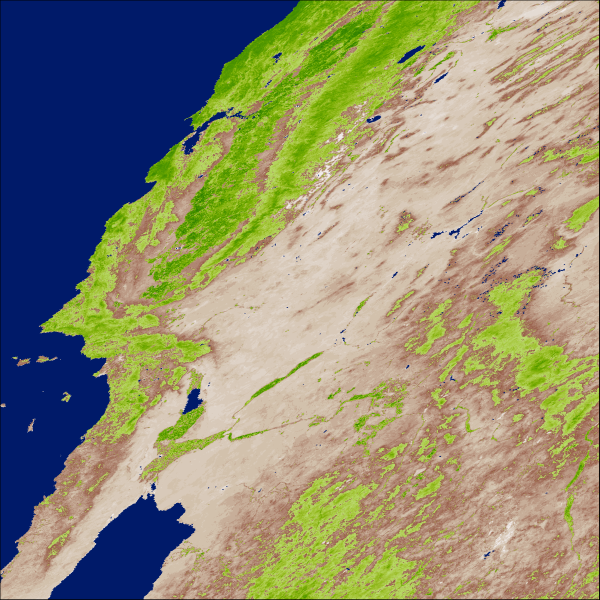

Figure 9: Colored 16-day 500-m MOD13A1 NDVI and EVI images (left and right respectively). Data from the western United States (tile h08v05), corresponding to the period from June 25 to July 10, 2000.

$\includegraphics[width=2.75in]{figs/ndvi-13a2-img-2000177-scaled.png}$ $\includegraphics[width=2.75in]{figs/evi-13a2-img-2000177-scaled.png}$

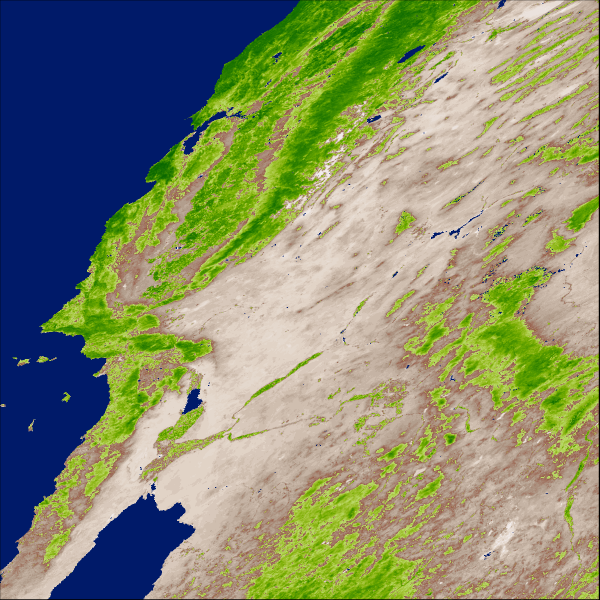

Figure 10: Colored 16-day 1-km MOD13A2 NDVI and EVI images (left and right respectively). Data from the western United States (tile h08v05), corresponding to the period from June 25 to July 10, 2000.

$\includegraphics[width=2.75in]{figs/ndvi-13a3-img-2000153.png}$ $\includegraphics[width=2.75in]{figs/evi-13a3-img-2000153.png}$

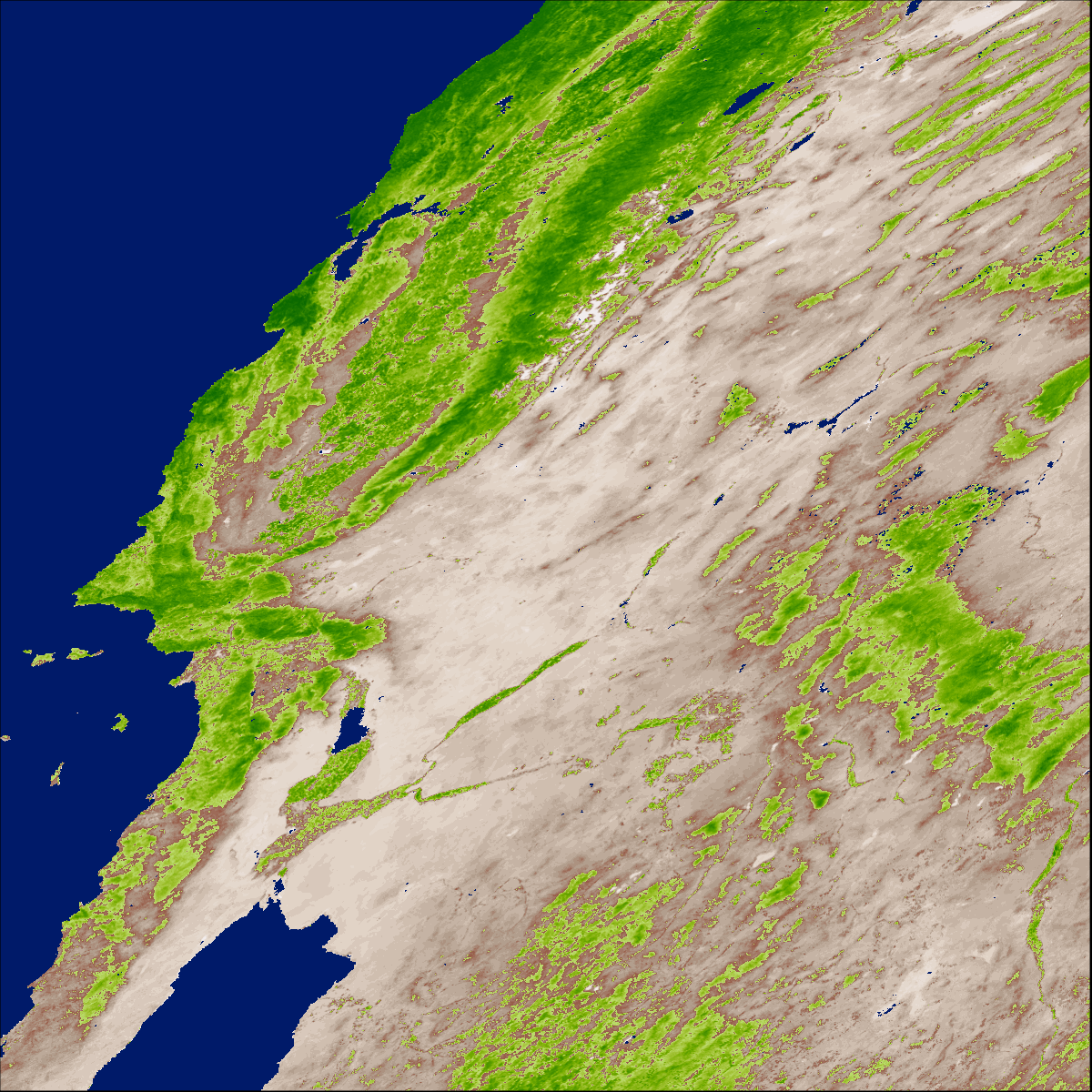

Figure 11: Colored monthly 1-km MOD13A3 NDVI and EVI images (left and right respectively). Data from the western United States (tile h08v05), corresponding to June, 2000.

$\includegraphics[width=5.5in]{figs/ndvi-13c1-img-2000097-scaled.png}$ $\includegraphics[width=5.5in]{figs/blank-filler}$ $\includegraphics[width=5.5in]{figs/evi-13c1-img-2000097-scaled.png}$

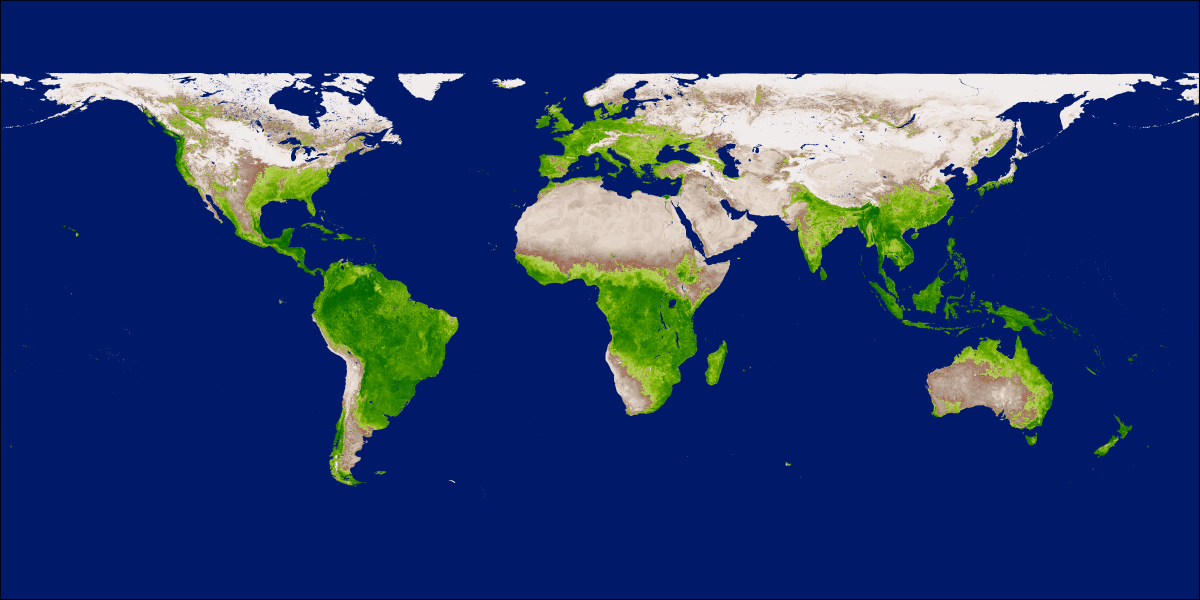

Figure 12: 0.05-deg 16-day MOD13C1 NDVI (upper) and EVI (lower) sample images. The VI values have been pseudo-colored to represent biomass health across the globe using data acquired during April 6-22, 2000.

$\includegraphics[width=5.5in]{figs/ndvi-13c2-img-2001001-scaled.png}$ $\includegraphics[width=5.5in]{figs/blank-filler}$ $\includegraphics[width=5.5in]{figs/evi-13c2-img-2001001-scaled.png}$

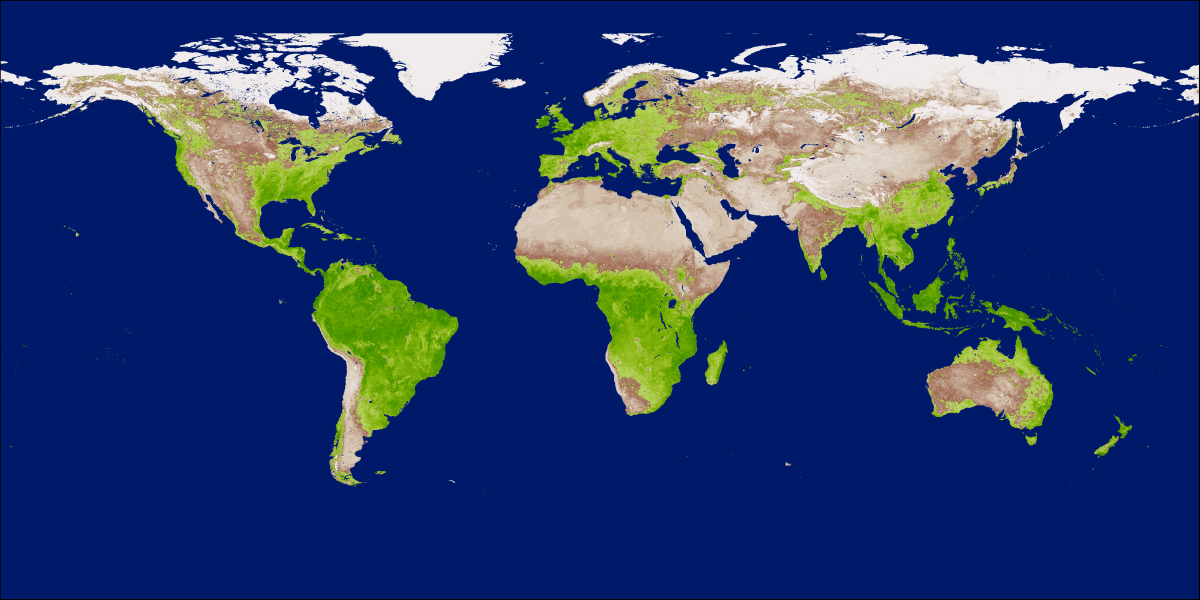

Figure 13: Monthly 0.05-deg MOD13C2 NDVI (upper) and EVI (lower) sample images. The VI values have been pseudo-colored to represent biomass health across the globe using data acquired in January 2001.

$\includegraphics[width=5.5in]{figs/evi-13q1-img-2000177-1x1.png}$ $\includegraphics[width=5.5in]{figs/blank-filler}$ $\includegraphics[width=5.5in]{figs/evi-13a1-img-2000177-1x1.png}$

Figure 14: Comparative of MOD13Q1 and MOD13A1 spatial resolution: Upper image: 250-m MOD13Q1; Lower image: 500-m MOD13A1. Images are subsets form corresponding full tiles shown before, but shown here at natural spatial resolution (each image pixel corresponds to 1 native MODIS data pixel). Location shows agricultural, riparian and wetland areas along the lower Colorado River and U.S.-Mexico Border.

$\includegraphics[width=5.5in]{figs/evi-13a2-img-2000177-1x1.png}$ $\includegraphics[width=5.5in]{figs/blank-filler}$ $\includegraphics[width=5.5in]{figs/evi-13c1-img-2000097-1x1.png}$

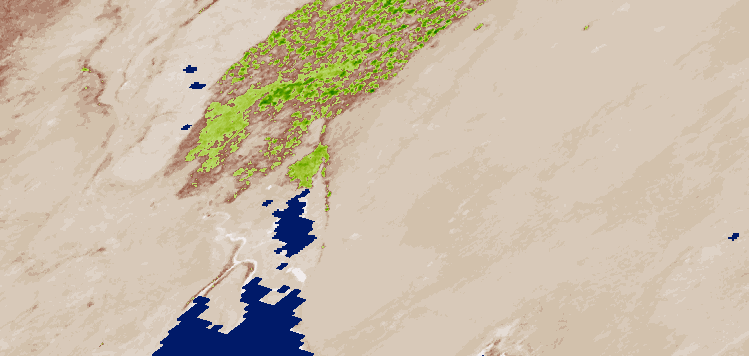

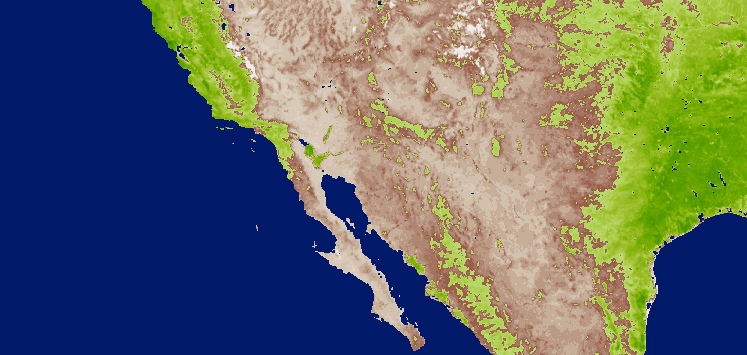

Figure 15: Comparative of MOD13A2 and MOD13C1 spatial resolution: Upper image: 1-km MOD13A2; Lower image: 0.05-deg MOD13C1. MOD13A2 is projected in Sinusoidal (SIN) projection, while MOD13C is in Geographic coordinates. Images are subsets form corresponding full tiles or images shown before, but shown here at natural spatial resolution (each image pixel corresponds to 1 native MODIS data pixel).
